Affordable all-rounder for use up to 5 hours.

– 12 %

2.990 €

3.154,80 € VAT included 2.629 €

Lift height

Capacity

Available from: Friday, 5 September

📢 In use by 561+ companies across Europe

SKU 10010003-52

Our SMART-S is an electric high lift truck at a low price. Depending on the lifting height, companies in trade, logistics and production use it to move and stack Euro pallets, to store and retrieve pallets on low pallet racks, to load and unload trucks or as a portable device.

Lifting height: Please select your required lifting height!
Load capacity: Depending on the model, the SMART-S can lift a maximum of 1,000 kg or 1,200 kg or 1,500 kg, with a particularly high residual load capacity (see load diagram)
Battery: Low-maintenance 105 Ah gel batteries for up to 5 hours of operation
Charging: Convenient charging of the SMART-S at any 230V standard socket - simply connect the integrated power plug and it will be fully charged again in 7 hours
Motors: Powerful lifting motor and economical three-phase drive motor
Fork length: The 1,150 mm long forks are ideal for Euro pallets, half pallets and lattice boxes
Wheels: Made of durable polyurethane (PU)

Features

Relaitvely low design height

A SMART-S fits through many gates and is suitable for low rooms or for transport in a truck.

High efficiency

The three-phase drive motor is powerful and economical at the same time.

High mobility

The small turning radius makes it easier to maneuver in tight areas.

Easy charging

Simply plug the integrated charger into a conventional socket and let it charge.

Ergonomic handle

All functions are carried out using the levers on the handgrip

Technical data

General

Capacity

1000 kg

Weight

460 kg

Forklift licence needed

no

Sound level EN-12053

70 dB

Material

steel

Chassis surface

powder coated

Seal

CE

Warranty

5 years warranty Plus

SKU

10010003-52

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

195 mm

Steering wheel width

80 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Lift

Lift height

1600 mm

Free lift height

1600 mm

Lift motor power

2,2 kW

Lift speed, unladen

0,11 m/s

Lowering speed, unladen

0,1 m/s

Mast type

single

Lift type

electric

Drive

Drive motor power

0,65 kW

Drive motor type

AC motor

Travel speed, unladen

5 km/h

Creep speed button

Yes

Gradeability, unladen

15 %

Max. gradeability, laden

6 %

Drive

electric

Brake

electromagnetic

Battery

Battery type

gel

Operating time

5 h

Battery charging time

7 h

Battery capacity

105 Ah

Voltage

24 V

Battery voltage

12 V

Battery quantity

2

Battery weight

70 kg

Battery dimensions

329x172x214 mm

Battery charger

internal charger

Delivery

Special transport

Delivered as

on pallet

Delivery requirements

Access routes accessible for lorry (40 t)

Links

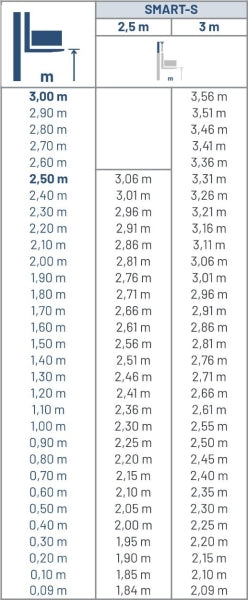

Capacity chart

Load center diagram

Product brochure

Product manual

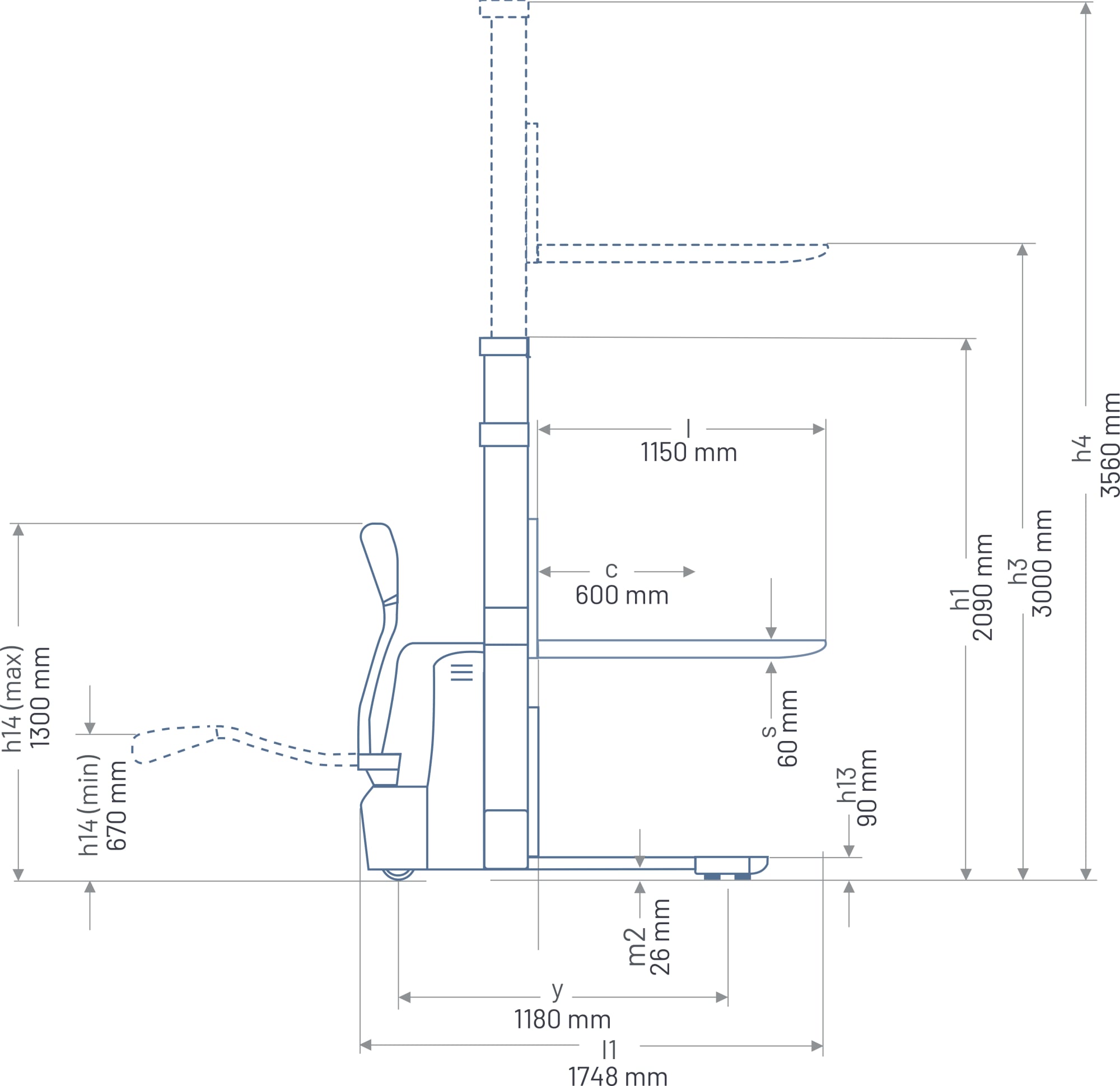

Dimensions

Fork length

1150 mm

l
Lift height

1600 mm

h3
Free lift height

1600 mm

h2
Load centre

600 mm

c
Height, lowered

2090 mm

h1
Height, extended

2090 mm

h4
Tiller height

1300 mm

h14
Length

1748 mm

l1
Ground clearance

26 mm

m2
Ground clearance, outer

90 mm

h13

Width

800 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

170 mm

e
Aisle width for 1200x800

2171 mm

Ast
Turning radius

1365 mm

Wa
Distance between forks

230 mm
