Electric Pallet Stacker DOUBLE-S with Initial Lift

Electric Pallet Stacker DOUBLE-S with Initial Lift

Double-decker pedestrian trolleys up to 1.2 tonnes at a low price.
5.938,80 € VAT included 4.949,00 €
5
Five year warranty
+
Options

Available from: Friday, 25 April

SKU 10010115-54

Questions? We’re here to help you

+498123 900 88 90

The DOUBLE-S is an electric high lift truck with initial lift. It combines innovative technology and cost-effectiveness for fast and efficient goods handling. Its ability to transport double pallets and its ability to adapt to narrow warehouse aisles make the reach truck an ideal tool in logistics and industry.

  • Initial lift function: Enables the transport of two pallets at the same time, increases efficiency
  • Gel battery: Maintenance-free with a capacity of 105 Ah for long-lasting operation
  • Battery level indicator: Constant overview of the remaining battery life
  • Maneuverability: Small turning radius of 1450 mm , ideal for narrow warehouse aisles
  • Driving speed: Maximum speed of 4.5 km/h when loaded
  • Safe braking: Wear-free electromagnetic braking system for maximum safety.
  • Safety standards: Equipped with safety and emergency stop switches and rounded transport forks

Features

Ground obstacles? No Problem.

Thanks to the initial lift and increased ground clearance, goods are transported safely over loading ramps and floor edges.

Double-stack-mode No Problem.

Thanks to the initial lift, two pallets can be picked up at the same time.

Safe and ergonomic

Safety button for emergencies, battery level indicator and electronic ignition lock are quick and easy to reach.

Low design height

Ideal for tight spaces, such as in trucks or for low passageways.

Ergonomic handle

All functions are carried out by the buttons and levers at the top of the handle.

Technical data

General
Capacity
1000 kg
Weight
670 kg
Forklift licence needed
no
Sound level EN-12053
70 dB
Material
steel
Chassis surface
powder coated
Seal
CE
Min. radius curve
1400 mm
SKU
10010115-54
Brand
Pallit
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
195 mm
Steering wheel width
70 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
70 mm
Lift
Lift height
2500 mm
Free lift
no
Lift motor power
2.2 kW
Lift speed, unladen
0.14 m/s
Lowering speed, unladen
0.12 m/s
Mast type
duplex
Lift type
electric
Drive
Drive motor power
0.65 kW
Drive motor type
AC motor
Travel speed, unladen
5 km/h
Creep speed button
Yes
Gradeability, unladen
15 %
Max. gradeability, laden
6 %
Drive
electric
Brake
Electromagnetic brake
Battery
Battery type
gel
Operating time
5 h
Battery charging time
7 h
Battery capacity
105 Ah
Battery voltage
12 V
Battery quantity
2
Battery weight
60.8 kg
Battery dimensions
329x172x214 mm
Battery charger
Integrated charger
Delivery
Delivery
forwarding agency
Delivered as
on pallet
Warranty
5 years warranty Plus
Links

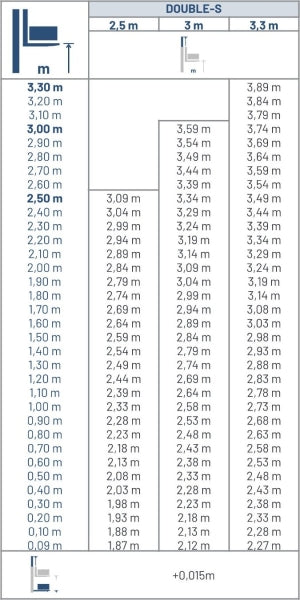

Load center diagram
Product brochure
Product manual

Dimensions

  • Capacity
    Fork length
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Creep speed button
    Fork roller type
    Initial lift height
    Load centre
    Max. gradeability, laden
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Electric Pallet Stacker DOUBLE-S with Initial Lift

    1000 kg
    1150 mm
    1872 mm
    2500 mm
    670 kg
    Polyurethane (PU)
    105 Ah
    gel
    Yes
    tandem
    120
    600 mm
    6 %
    5 h
    5 years warranty Plus
    Monday, 28 April
    from 4.949,00 € 5.938,80 € VAT included
