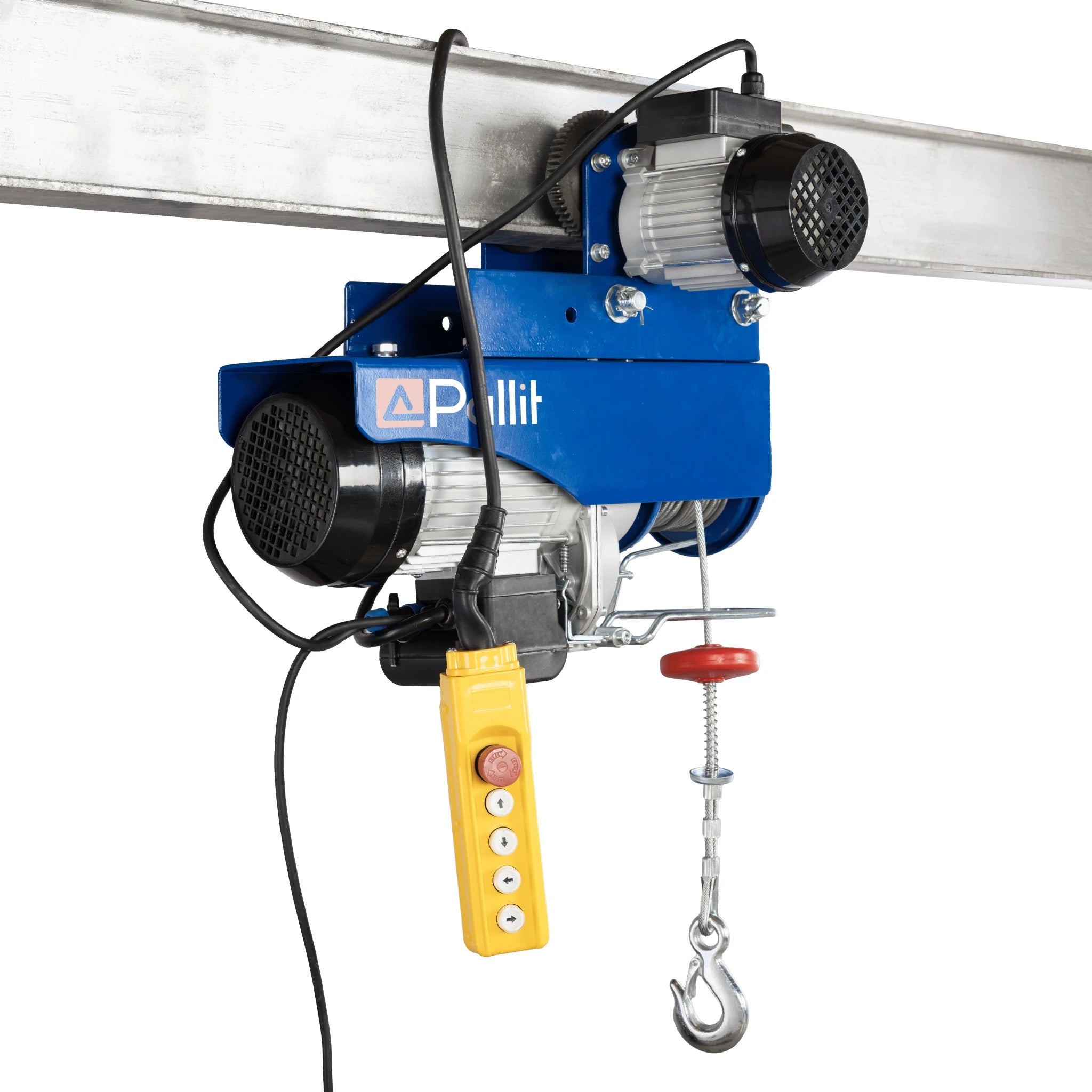

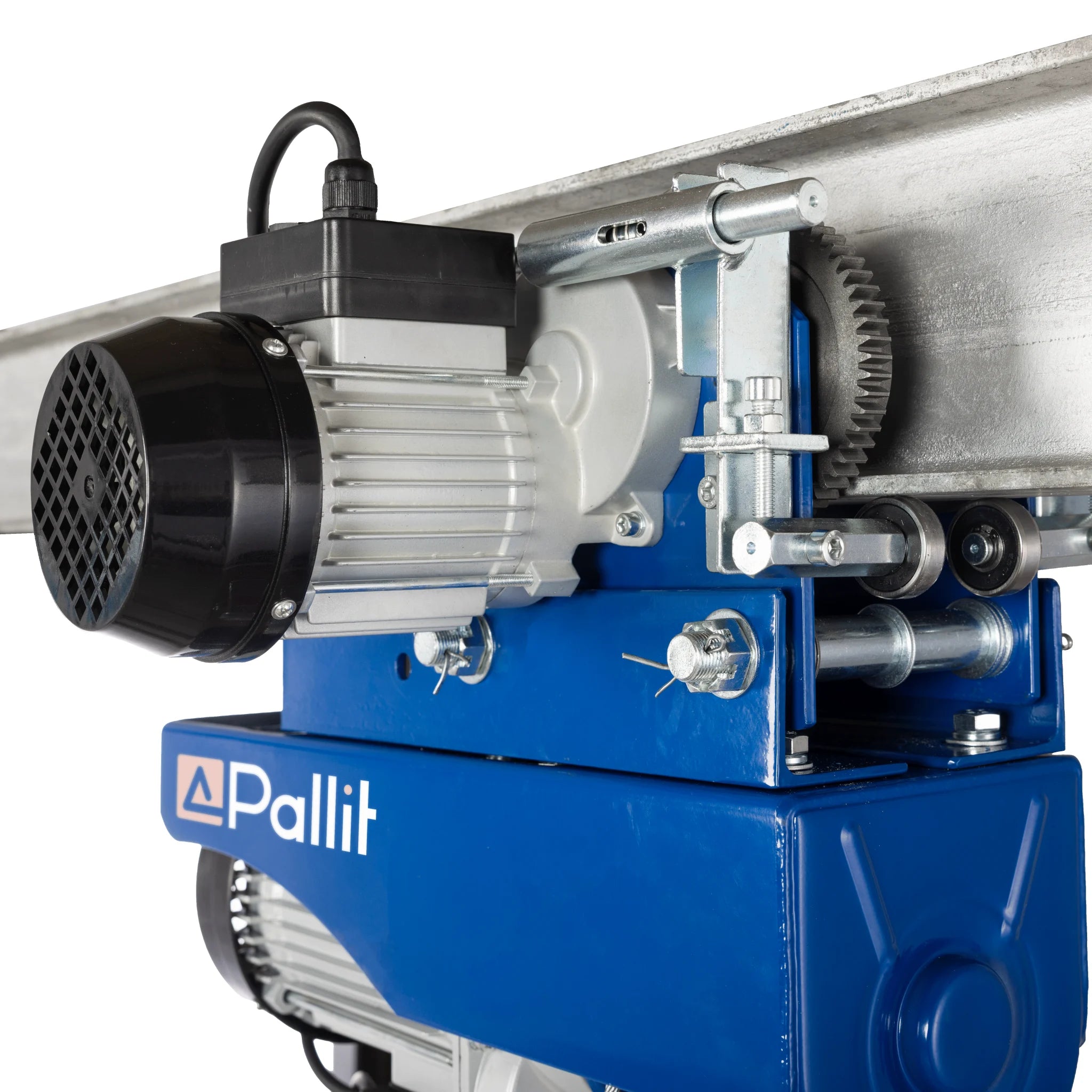

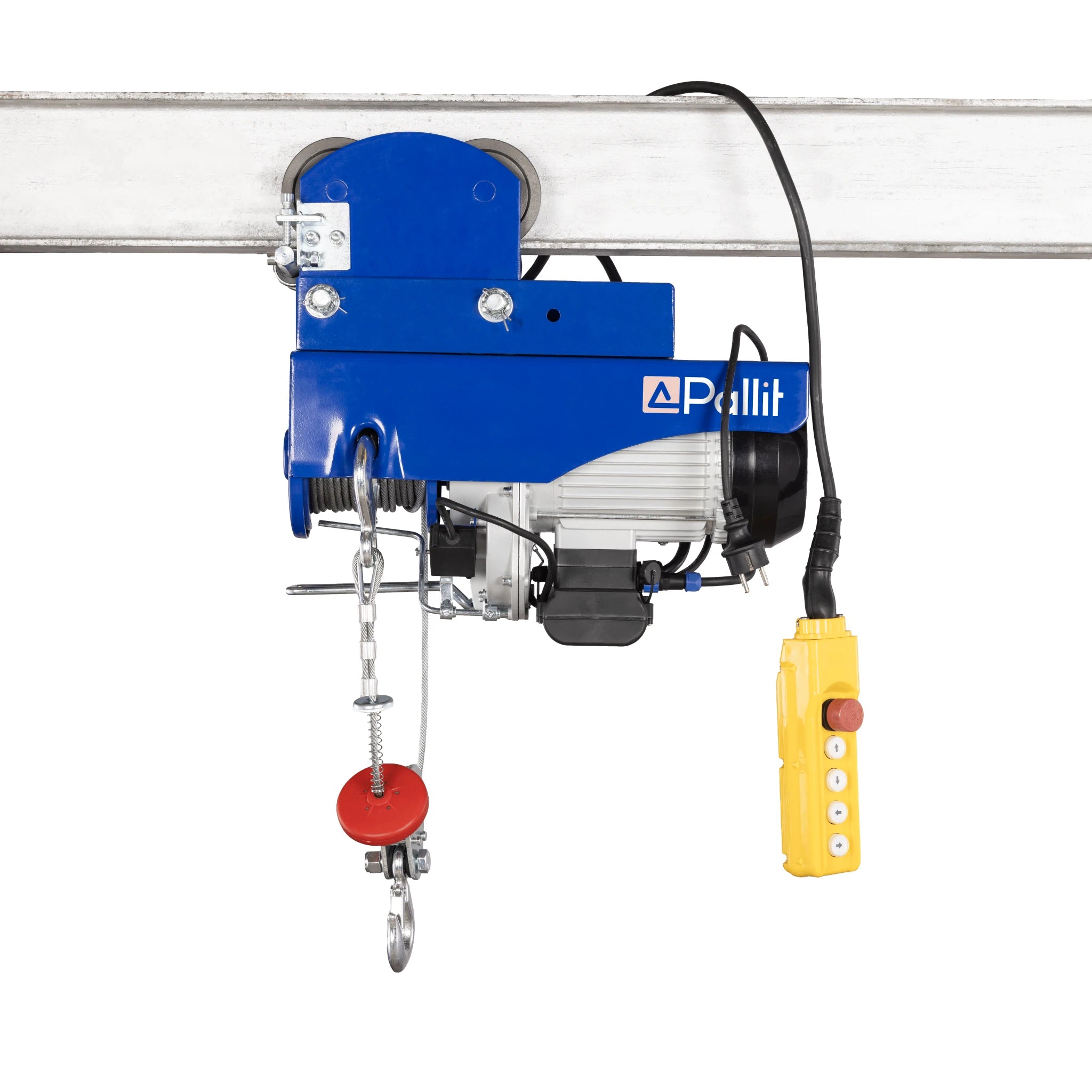

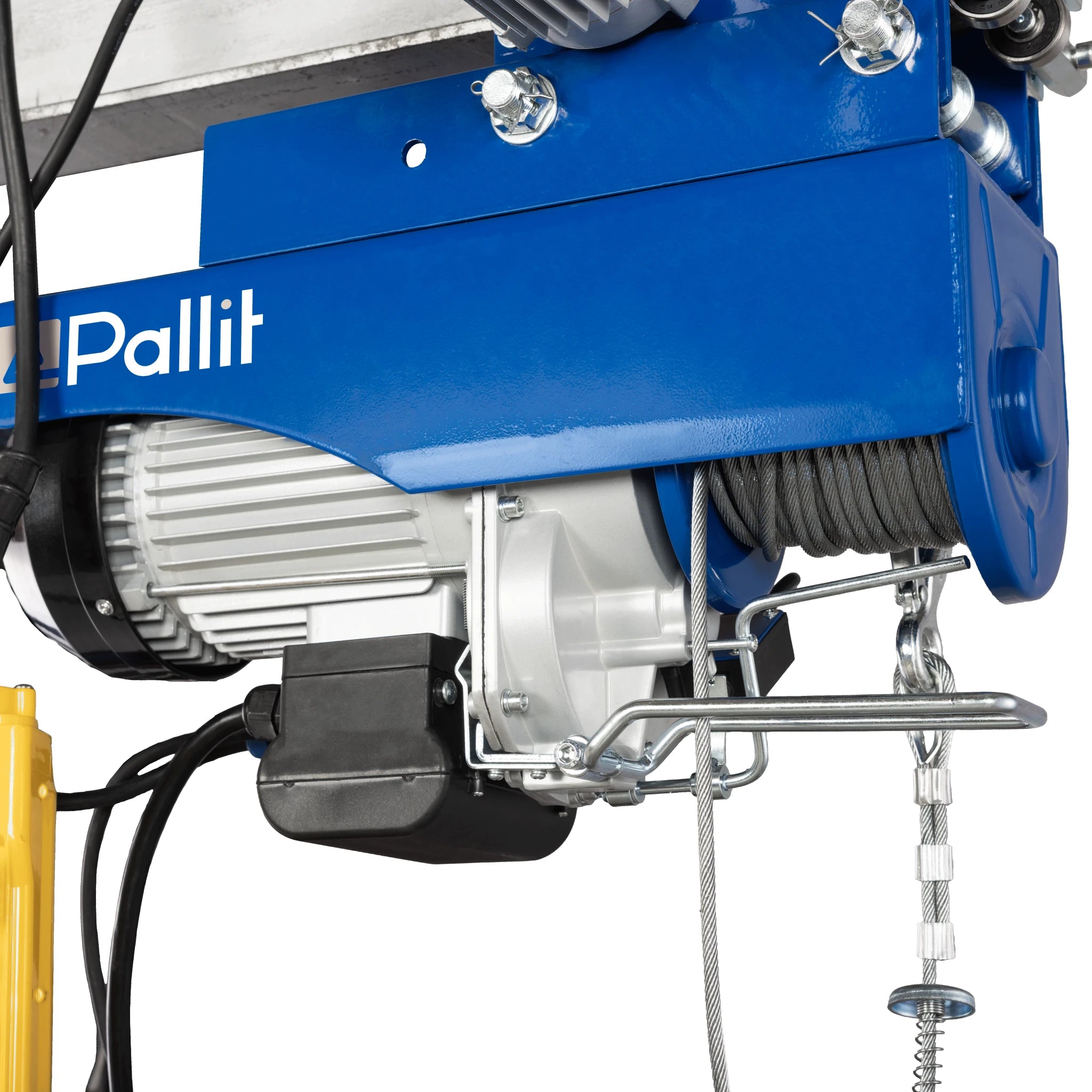

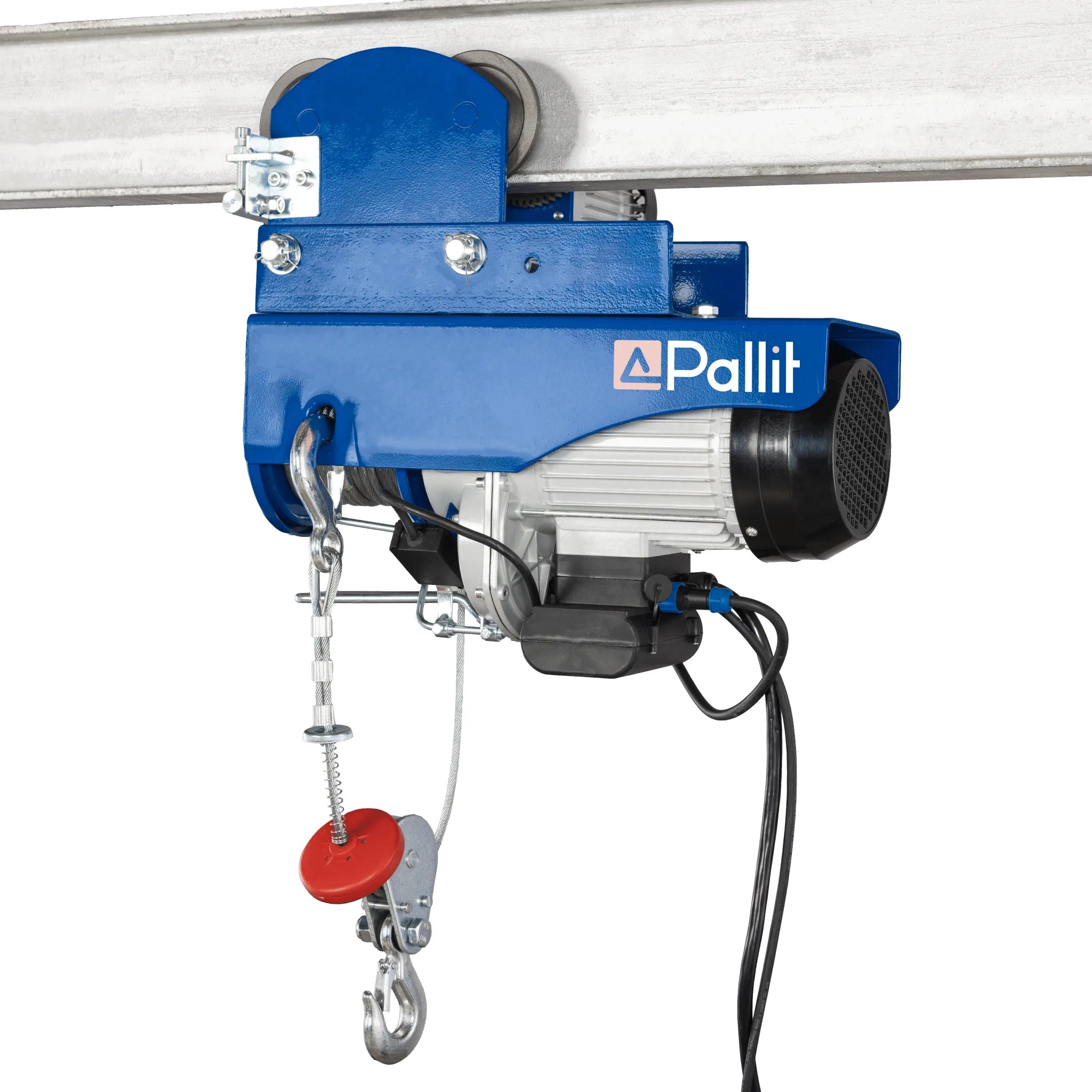

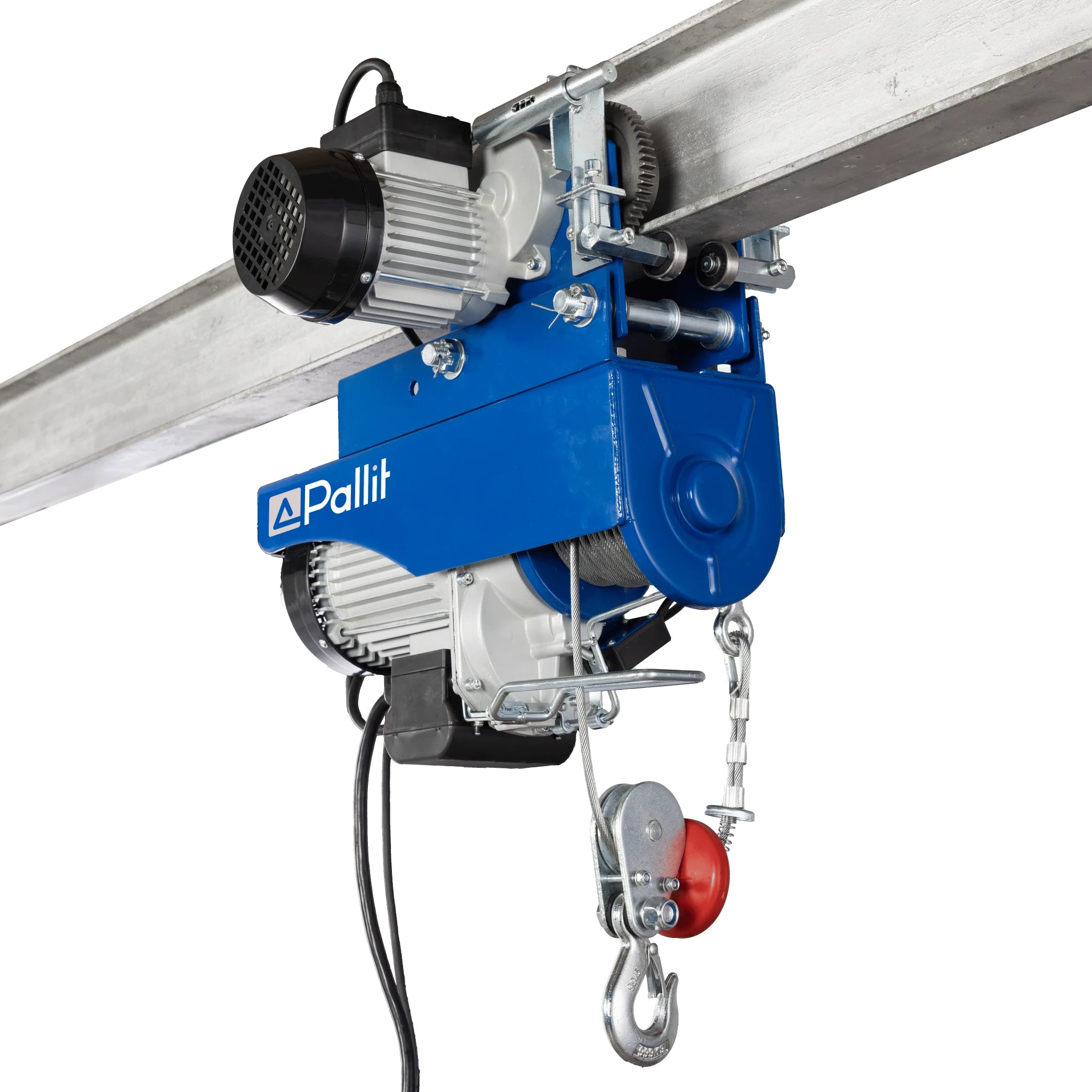

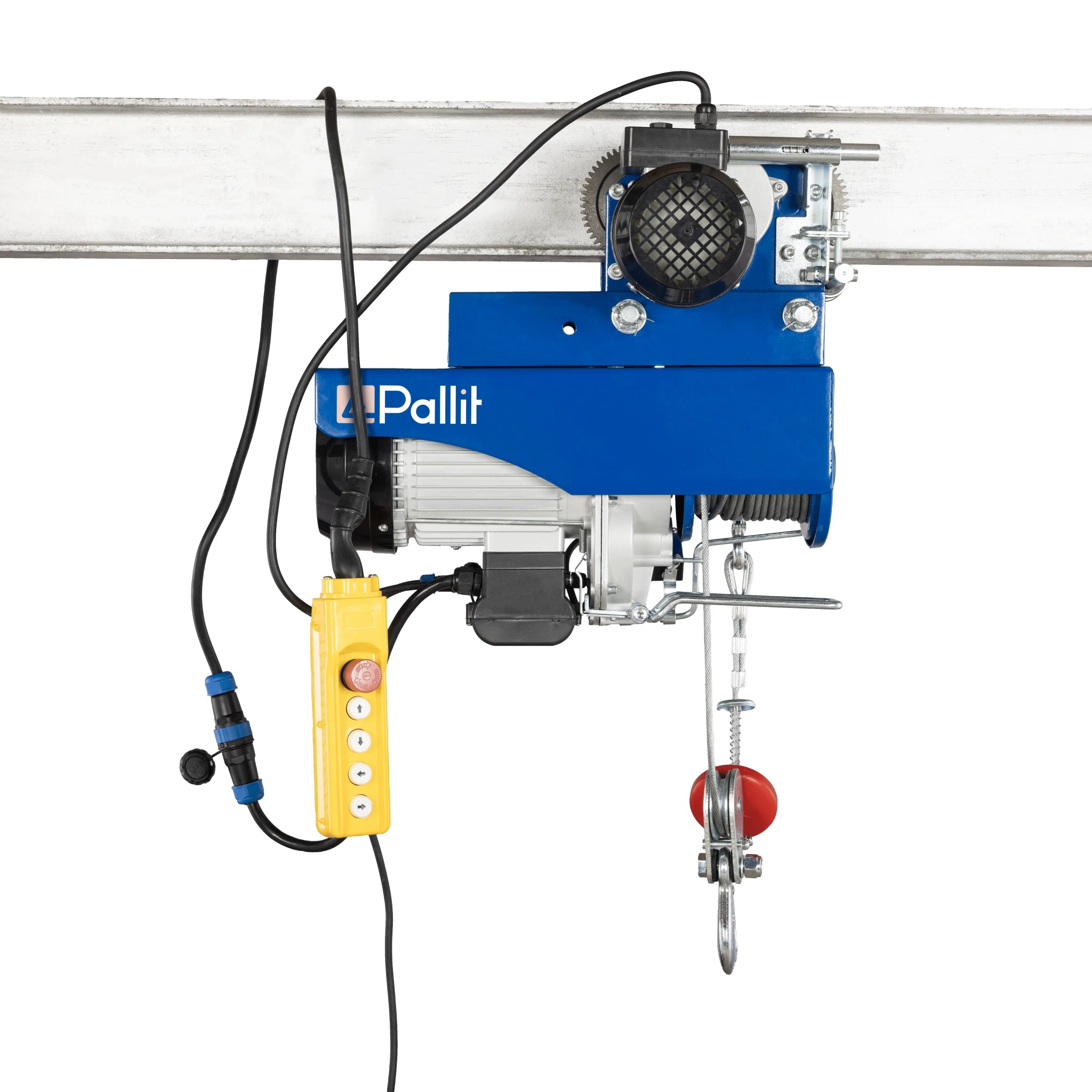

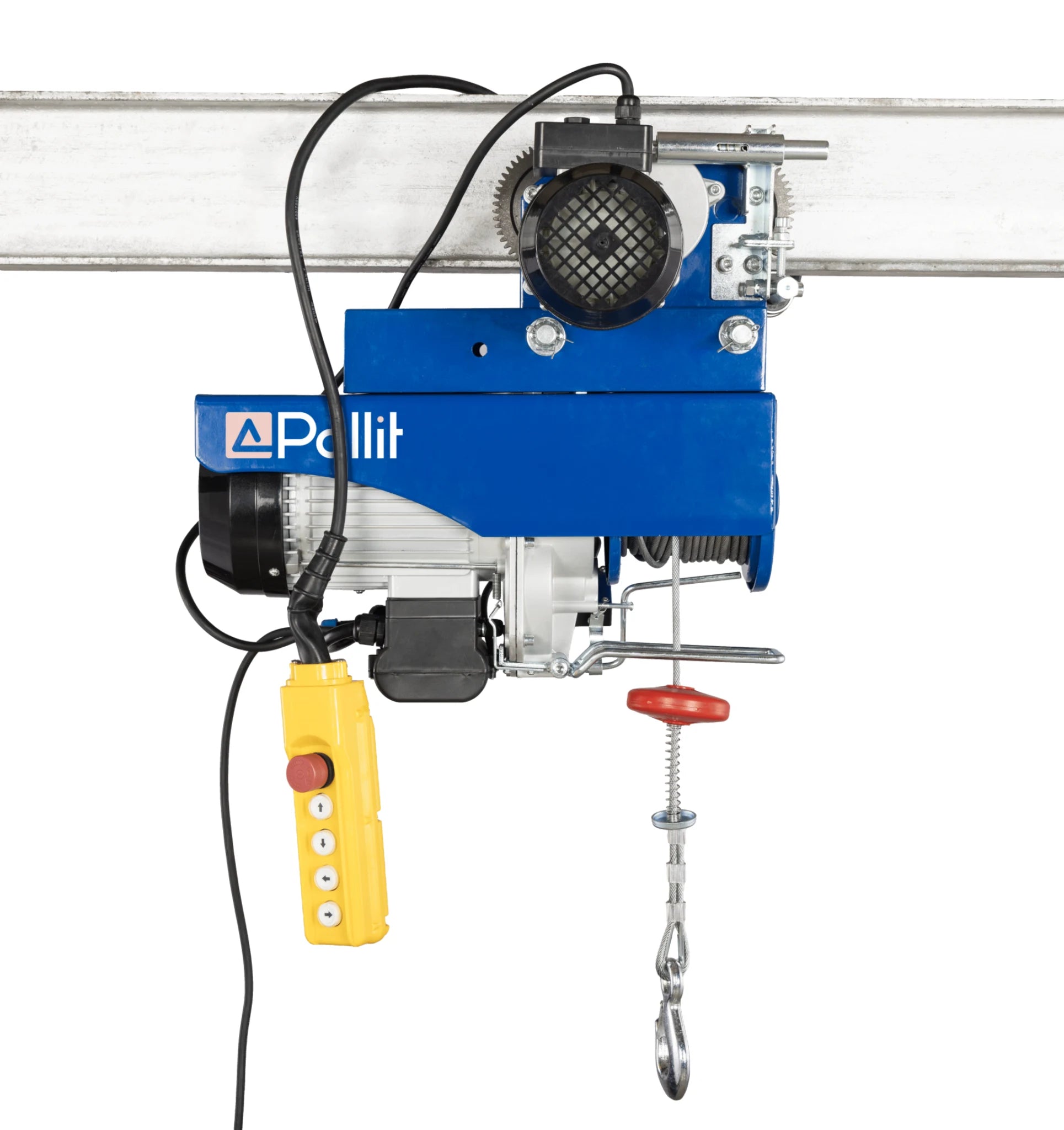

Electric Hoist with Beam Trolley COMBI

Electric Hoist with Beam Trolley COMBI

Combinazione potente per carichi pesanti.
500,40 € VAT included 417,00 €
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 8 left!

Free delivery: Wednesday, 30 April

📢 In use by 239+ companies across Europe

SKU 10010490-0

Questions? We’re here to help you

800 683 803

The electric cable winch with integrated trolley is an optimal solution for versatile lifting work in warehouses, garages and workshops.

  • Lifting capacity: Lifts loads up to 1,000 kg (double hook)
  • Lifting height: 12 m (single hook) or 6 m (double hook)
  • Motor of the cable pull: Equipped with a 1600 W motor with overheating protection
  • Trolley motor: 180 W motor power
  • Travel speed: Maximum travel speed of the trolley at 16 m/min
  • Control: One remote control for cable winch and trolley, power connection required
  • Installation: Suitable for H-beams with a flange width of 68 - 110 mm

Technical data

General
Capacity
1000 kg
Capacity, double cable
1000 kg
Capacity, single cable
500 kg
Weight
50 kg
Sound level EN-12053
71 dB
Material
steel
Colour
Blue
Cable length
12 m
Wire cable diameter
6 mm
EN standard
EN14492-2
Seal
CE
IP protection type
IP54
Insulation class
1 | 2 | 4
Control cable length
1.5 m
Power cable length
0.65 m
Rated current
7.5 A
Thermal overload protection
Yes
Min. radius curve
1000 mm
SKU
10010490-0
Brand
Pallit
Lift
Lift motor power
1.6 kW
Lifting height, single cable
12 m
Lifting height, double cable
6 m
Lifting speed, single cable
8 m/min
Lifting speed, double cable
4 m/min
Drive
Drive motor power
180 kW
Battery
Voltage
230 V
Delivery
Delivery
delivery service
Delivered as
2 packages (partially assembled)
Links
Product brochure
Safety instructions
Product manual
